Authentic Pizza Ovens Hybrid Ready Brick Pizza Oven

Description

A hybrid brick pizza oven is a hand built refractory dome that burns wood the way it always has and, when you choose, runs on a gas burner instead. Authentic Pizza Ovens builds two of them and this page sells both: the Lisboa Premium Hybrid and the Pizzaioli Premium Hybrid, each a Portuguese firebrick dome with a burner port drilled at the factory before the outer shell goes on, so a Vamparossa gas burner slides into place without a masonry bit ever touching the oven. Pick the dome above. The burner is a separate purchase, detailed below, and wood cooking is unchanged if you never buy one.

The reason to buy a wood and gas brick pizza oven instead of a gas fired steel oven is mass. A steel oven with a burner cooks by flame, and the floor cools the moment the flame drops. A burner in a refractory dome does the same job a wood fire does: it loads 1,250 to 1,300 pounds of firebrick, mortar, and refractory cement with heat that keeps radiating for hours after the valve is closed. The burners come from Vamparossa, a Charlotte company that builds UL listed conversion burners in Italy for this kind of oven, in a manual and an automatic version, for natural gas or propane.

What Pre Drilled Means, and Why It Is Worth $500

A standard Premium dome from Authentic Pizza Ovens costs $2,795. The same dome sold as a pre drilled pizza oven costs $3,295, and the $500 buys one thing: a hole. It is a fair trade once you see where the hole goes. A Vamparossa burner enters the chamber low on the rear wall, through the firebrick, the rockwool wrap, and the refractory shell, and the gas train sits outside behind it. Cutting that opening through six inches of bonded refractory on a finished oven without cracking the dome or breaking the insulation seal, is the job most owners should not attempt and no warranty will cover.

On a gas ready brick oven the port is formed before the shell is cast. The firebrick course is laid around it, the rockwool is cut to it, the mesh is tied around it, and the cement goes on with the opening already true. The photo in the gas section shows it from inside: a clean port in the rear wall, burner head on the floor in front. That is the entire difference between the hybrid and the wood only Premium. Same door, same floor, same dish, same thermometer, same crate. Everything you read on the Lisboa and Pizzaioli pages about construction, curing, and cooking applies here.

One limit to know before you order. Authentic Pizza Ovens drills only its two Premium domes as stock items, and only in the terracotta arch and white dome finish. There is no Stone Arch hybrid, no Rustic hybrid, no Lume or Ventura hybrid on the shelf. Any other dome in the range can be ordered drilled, at that oven's list price plus $500 and a build time of 12 to 15 weeks, through us. If the hybrid brick pizza oven you want is one of those, ask before you buy anything and we will confirm the lead time with the factory in writing.

Wood, Gas, or Both: How a Burner Works Inside a Brick Dome

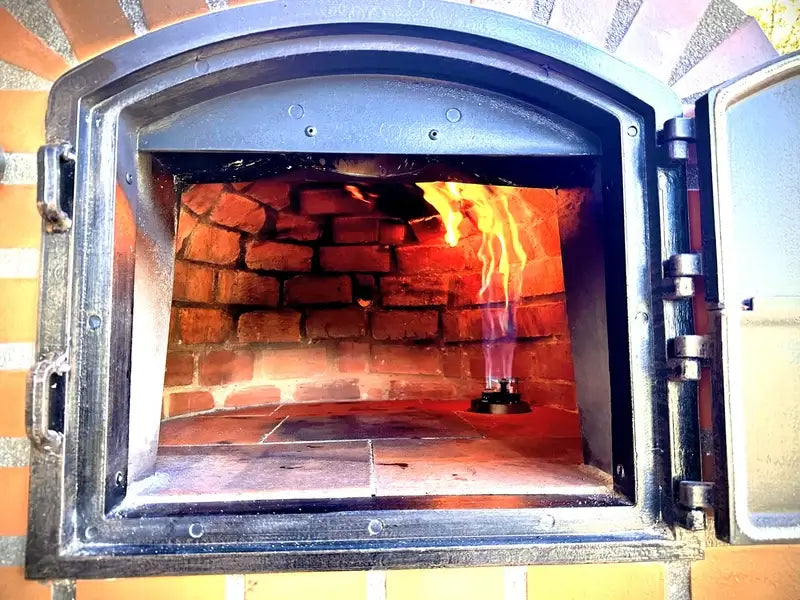

The burner running with the door open. The flame rises from the head at the rear and rolls across the ceiling the way a wood flame does.

A Vamparossa burner is not a ring of jets under the floor. It is a single head that sits on the cooking floor at the back of the chamber and sends a tall flame up the rear wall and across the dome, the path a rear wood fire takes. The dome absorbs the flame's heat, the floor takes it by conduction and reflection, and after thirty to forty minutes the brick is as loaded as it would be after a wood fire of the same length. Close the valve and the hybrid brick pizza oven behaves like any other refractory oven: the mass does the cooking.

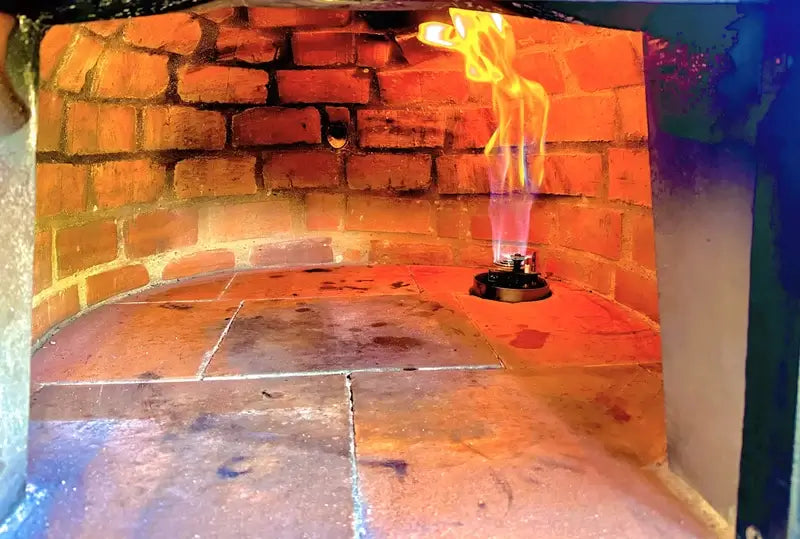

Inside the chamber: the burner head on the floor and the factory port in the rear wall above it. Nothing was cut after the oven was built.

The Vamparossa system installed and running, from Authentic Pizza Ovens. The gas train sits behind the dome; only the head is inside.

Both is the setting most owners settle on. Light the burner to bring the dome up without tending a fire, then lay a small split of oak or fruitwood beside the head once the floor is hot. The gas keeps the chamber at temperature and the wood adds the smoke and the flavor that a gas only oven cannot. Vamparossa built the burners for gas only, wood only, or the two together. On a wood and gas brick pizza oven that combination is the everyday mode: a weeknight pizza on gas alone, a Sunday roast on both, bread the next morning on stored heat.

A roast turning on the rotisserie spit over the gas flame in a Lisboa dome. The spit is the reason to pick the taller dome for a gas oven.

Pizza on gas. The flame at the rear does the top of the pie; the loaded floor does the base.

Choosing the Burner: Manual or Automatic, Natural Gas or Propane

Crustify sells the oven. Vamparossa sells the burner, direct, and the two arrive as separate shipments; Authentic Pizza Ovens does not bundle them. Four burners fit these domes and the choice is two decisions. First, control. The M-1 is manual: a push button spark lights the pilot, a dial sets the flame high or low; it runs on a battery igniter and needs no power at the oven. The E-1 is automatic: you set a target temperature on its control box, a probe reads the chamber, and the burner cycles to hold it, the nearest thing to a thermostat a brick oven gets. It needs a 120 volt outlet.

Second, fuel. Each burner is built for either natural gas or propane, chosen when you order it from Vamparossa. Natural gas means a plumbed line from the house, run by a licensed gas fitter, and no tanks to swap. Propane means a cylinder and a regulator beside the base and no trenching. If the line is not already at the patio, propane is the shorter path to a working hybrid wood fired pizza oven. Expect roughly $1,500 for an M-1 and roughly $2,900 for an E-1; confirm current pricing with Vamparossa and name the oven so they size the head.

Installation is the one place the maker and we agree on caution. The burner head slides through the port, the gas train mounts behind the oven, and the connection to the supply is a gas fitter's job under local code, not a weekend project. Vamparossa ships installation instructions with every burner and answers the phone about them. A hybrid brick pizza oven set up this way passes the same inspection a gas grill line does, and the port is the only part of the oven the installer touches.

Authentic Pizza Ovens on the hybrid option and the burner choices.

Choose Your Dome: Lisboa Premium Hybrid or Pizzaioli Premium Hybrid

The two hybrid brick pizza ovens in the picker are the same construction with different geometry, and gas changes the decision less than you might expect. The burner works in either. What differs is what you will cook on the nights the burner is running, and how much of the chamber you can reach through the door.

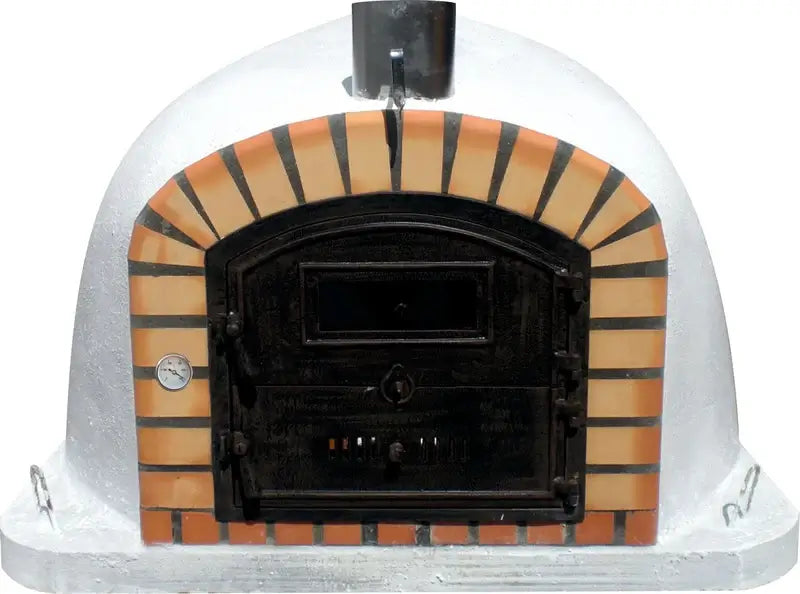

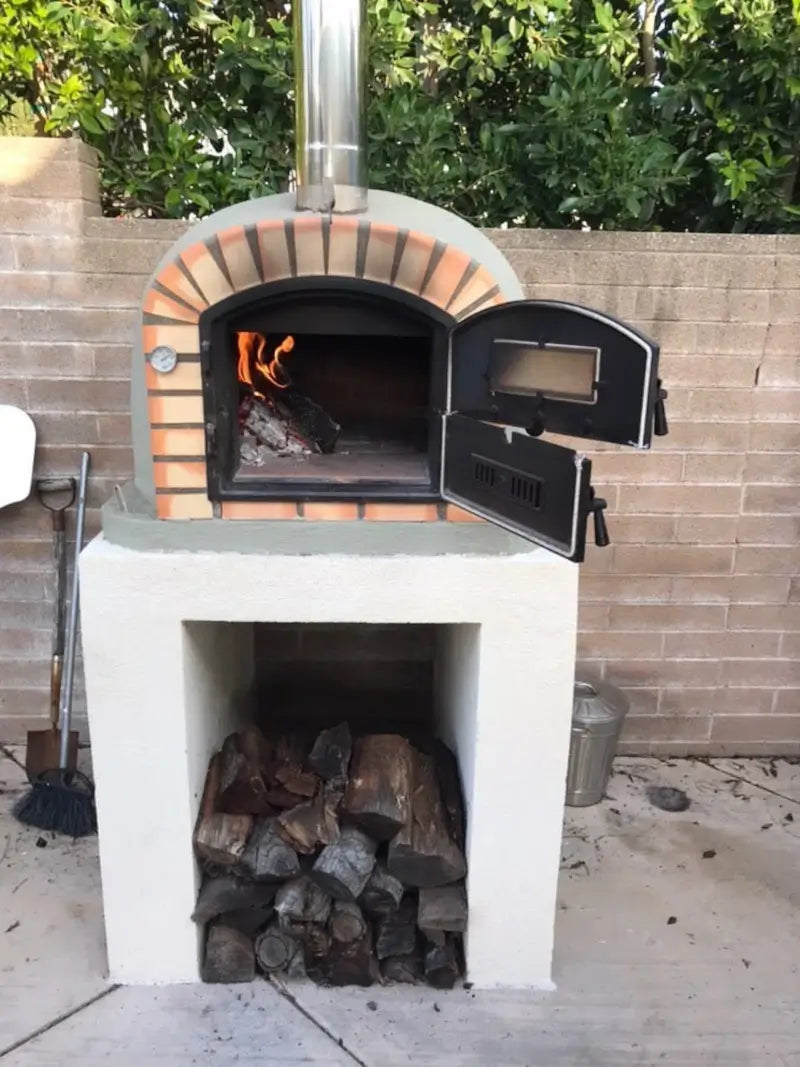

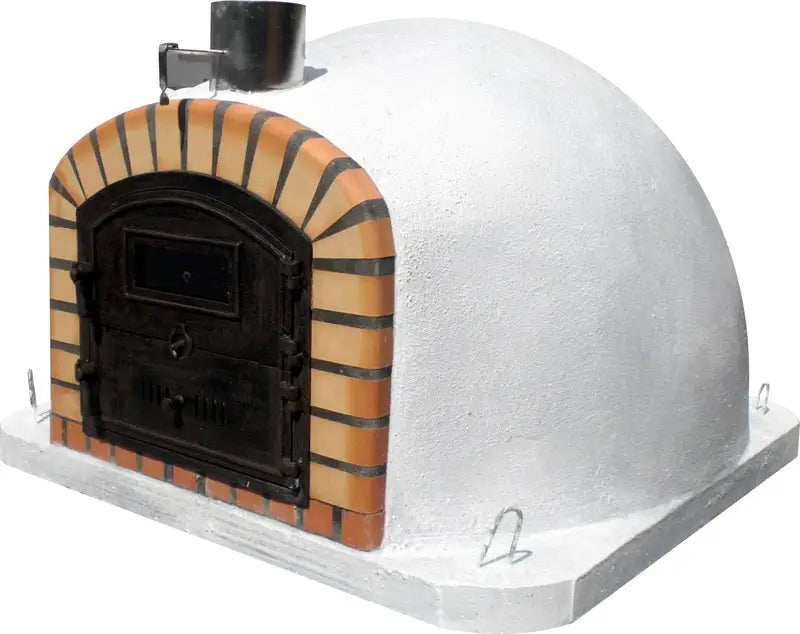

Lisboa Premium Hybrid: the tall dome, the Dutch door, the spit

The Lisboa dome stands about 31 inches tall with a 15.5 by 12 inch opening closed by a split cast aluminum door that swings open like a barn door. That split door is what makes it the better gas oven for roasting: open the bottom half, run the rotisserie spit through, and a chicken or a leg of lamb turns in front of a gas flame that never needs feeding, as the video above shows. The floor is 31 by 31 inches, two 12 inch pizzas side by side. It weighs about 1,300 pounds and is the hybrid brick pizza oven Authentic Pizza Ovens keeps in stock in Texas.

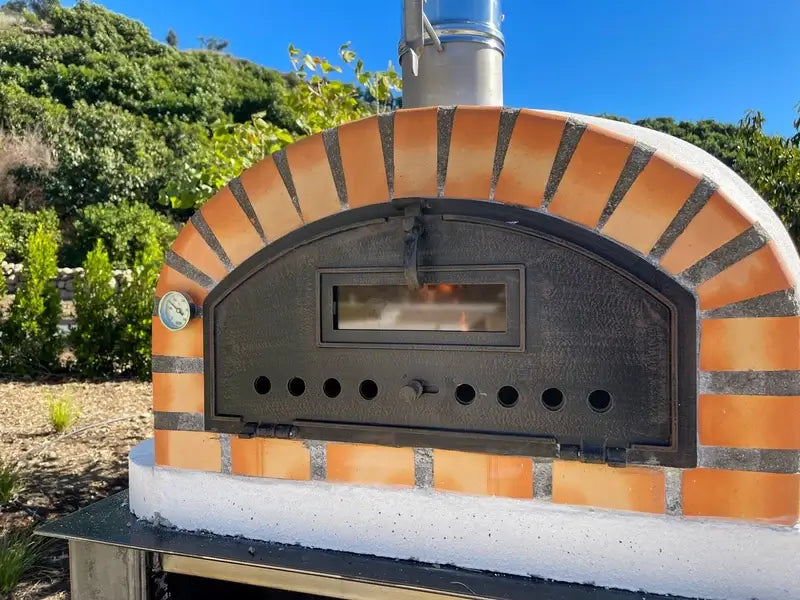

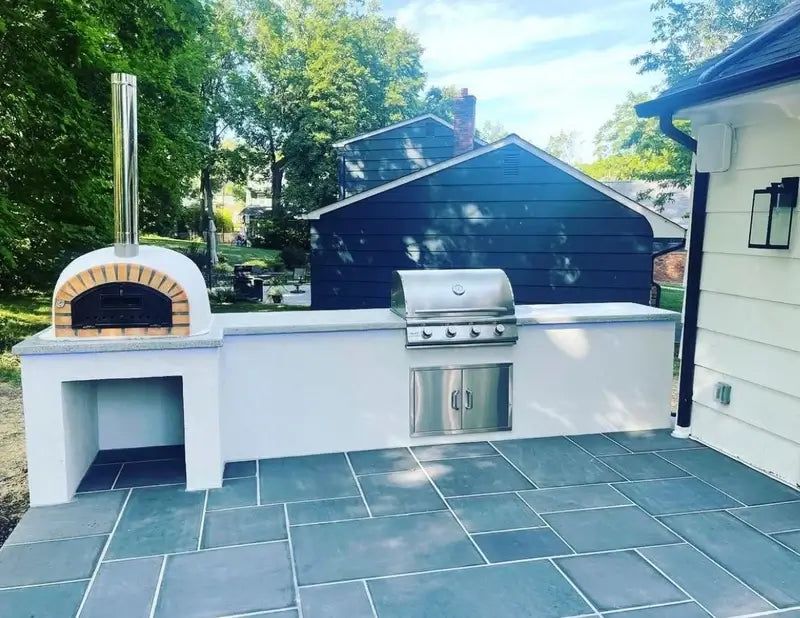

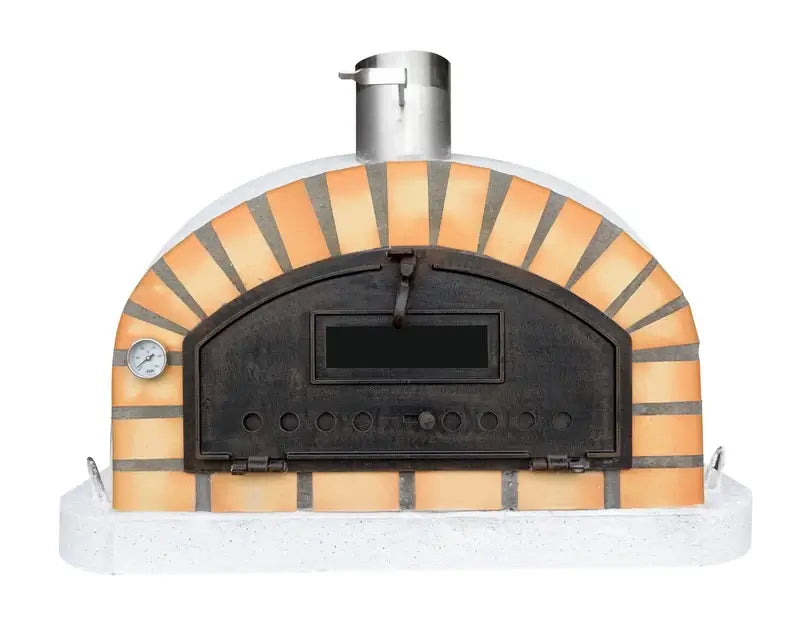

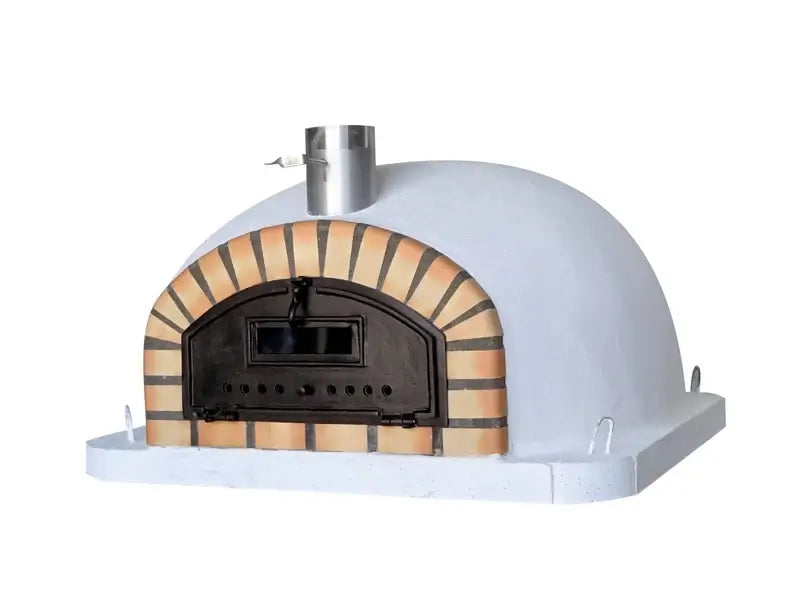

Pizzaioli Premium Hybrid: the low dome and the widest door

The Pizzaioli dome is five inches lower, about 26 inches, with a 19.7 by 10.6 inch door that drops down out of the way. The lower ceiling keeps the flame close to the pie, so on gas the rear burner browns a pizza top as fast as wood does; it is the dome to choose if pizza is most of what the oven will do and roasts go in a pan. The floor is 33 by 33 inches, with no spit port. It weighs about 1,250 pounds, and the pre drilled pizza oven version is built to order at about 12 weeks, which pushes many gas buyers to the Lisboa.

Either way the door, chimney cavity, and spout are cast AlSi10Mg aluminum with a borosilicate window, the arch is terracotta brick, and the dome is white stucco that you can paint or tile after curing. If the choice is still open, the honest split is this: Lisboa for a gas oven you will roast in, Pizzaioli for a gas oven you will mostly bake pizza in and can wait three months for.

Cooking on Gas, Cooking on Wood, Cooking on Both

On gas, a hybrid brick pizza oven reaches pizza heat in thirty to forty minutes from cold, with no fire to build first. In the maker's clip above the reading passes 500°F fifteen minutes after the burner is lit, with the dome still climbing. Burner lit, door off, damper open; once the dome clears to white, pizza goes on at 370 to 450°C, 700 to 850°F, about 90 seconds a pie. The floor in front of the head is the working space. Launch to the side, quarter turn every twenty seconds, and pull. On the E-1 the chamber holds its setting between pies.

On wood, nothing on this page is different from the wood only Premium. The burner head stays in place cold, or comes out and the port is closed, and the fire is built in the center of the floor and raked to one side once the dome clears. Seasoned hardwood only, split small for pizza and in chunks for coals; oak for a long clean burn, apple or cherry for sweetness on a roast, hickory sparingly. Never softwood, never treated lumber, never accelerants. The maker's fire starting method is below, and it is the same one for every dome it builds.

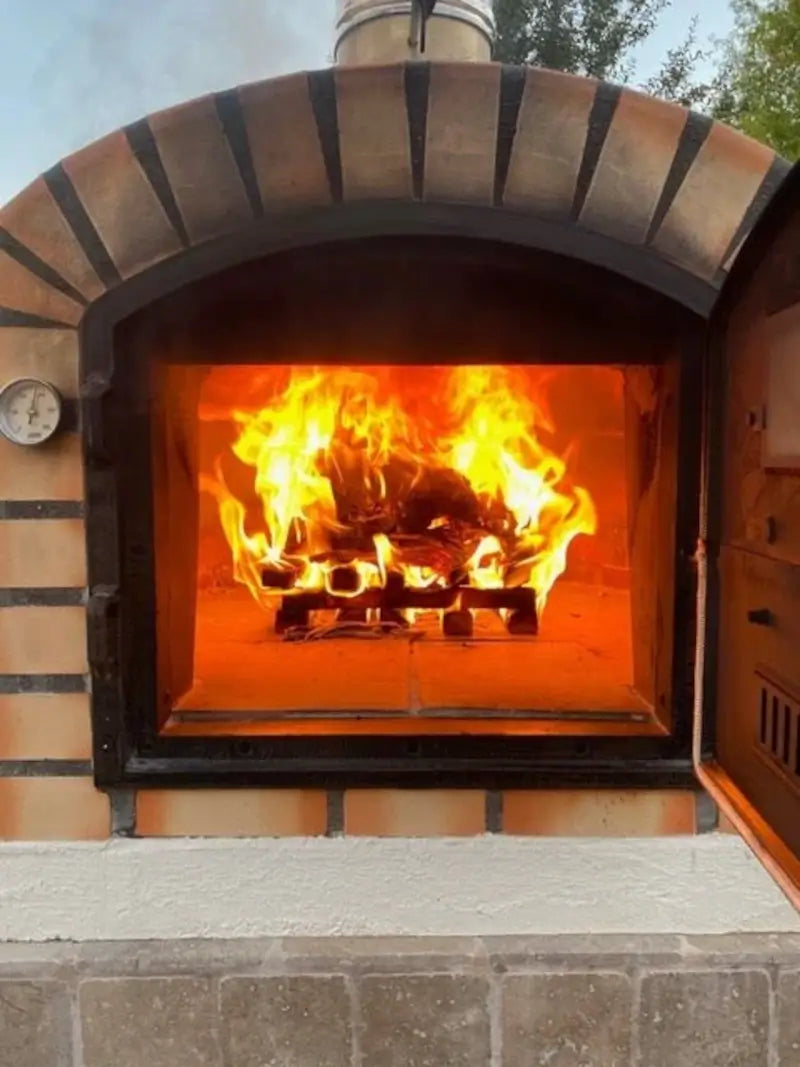

Starting a wood fire in an Authentic Pizza Ovens dome: crosshatch stack, kindling in the center, torch, damper open.

Both is where a wood and gas brick pizza oven earns its price. Bring the dome up on gas while you make dough, then add a single split of wood beside the head for the smoke, and let the burner carry the heat while the wood carries the flavor. For a roast, close the door on the burner at its lowest setting and the chamber sits in braising territory for as long as the valve is open, with no coal bed to manage. For bread the next morning, the stored heat is there whether you loaded it with gas or wood; the brick does not remember which.

Installation: Base, Clearances, and the Gas Line

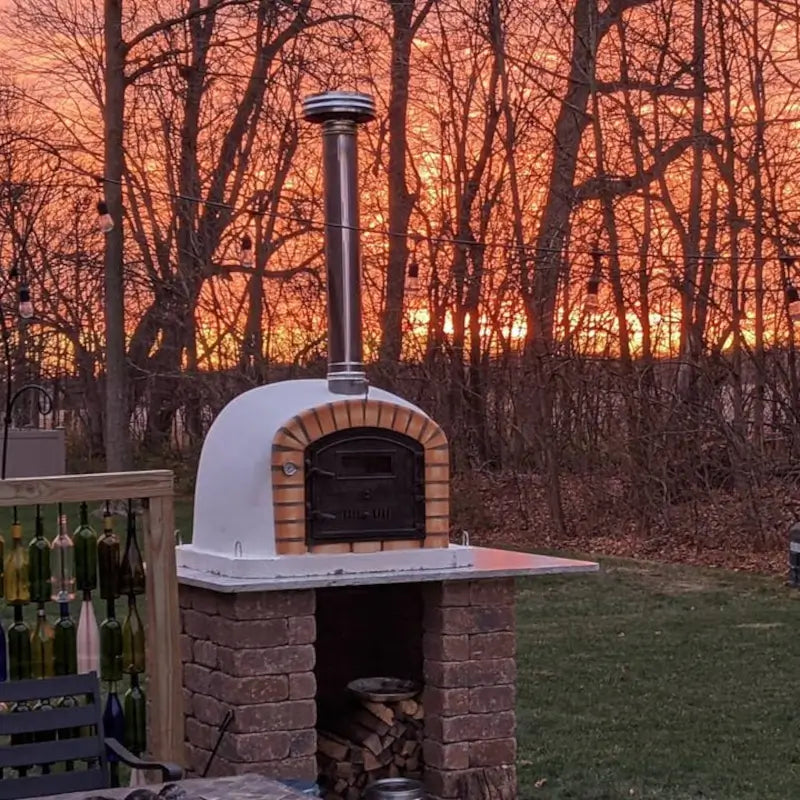

A gas ready brick oven sits where a wood one sits: on a masonry base rated for 1,300 pounds, set with an engine hoist or forklift on the four steel loops cast into its slab, which are cut flush afterward. The base is a U shaped block stand five courses high on a 43 by 43 inch footprint, open in front for wood or for the propane cylinder, with a top slab that carries the weight. The oven arrives finished; there is nothing to assemble but the door and the chimney spout, which ship packed separately inside the chamber.

Clearances to anything combustible are the maker's published figures for every dome it sells: 2 inches at the sides of the dome, 16 inches above it, 30 inches around the stainless flue, 28 inches around the vent bricks, and 47 inches of non combustible floor in front of the door for falling embers. Under a roof or pergola, run the stainless chimney extension through and fit the chimney cap with its spark screen; both fit the 5.5 inch spout on either dome.

The gas line is the one step a hybrid brick pizza oven adds. Plan the route to the rear of the base before the oven is set; the gas train mounts behind the dome and the supply reaches it beside the base. Natural gas is a licensed fitter's job under local code with a shutoff at the oven; propane is a cylinder on the base shelf with a regulator and hose, also connected and leak tested by a fitter. The built-in versus freestanding guide covers how a base and a gas line are planned together, and the rest of the base mounted range is in the built-in pizza ovens collection.

Curing and Cracks on a Gas Ready Brick Oven

Gas does not skip the cure. A new dome holds water, and the five day schedule drives it out slowly: one small fire a day held four to five hours at 60, 100, 150, 200, and 250°C on the dial, with the door closed each night. The burner is the easier tool: an M-1 on low holds a day one temperature a wood fire has to be coaxed into, and an E-1 simply holds the number. Cure on gas if the burner is installed, on wood if not. Either way the warranty requires it, and a hybrid brick pizza oven that skips it cracks like any other.

Hairline cracks appear regardless of fuel, on the dome, around the arch, and at the seam with the slab. Every handmade refractory oven shows them, Authentic Pizza Ovens says so in writing, and they sit in the outer shell, not the firebrick chamber. The Ultra Fire kit packed inside the oven fills them once the oven has run for a few weeks. A gas flame does not open cracks any faster than wood; running the chamber past 500°C on the dial does, on either fuel, and that is the line the warranty draws. The maker's short on the repair kit is here.

Filling hairline cracks with the Ultra Fire kit that ships inside every Authentic Pizza Ovens dome.

How It Compares to the Other Hybrids Crustify Sells

Crustify carries five other ovens that burn wood and gas, and none of them is a hybrid brick pizza oven built from hand laid firebrick with a Vamparossa port. The table below is the difference in one screen. The short version: the other hybrids arrive with their burner built in and ready to light, which is simpler; the Authentic Pizza Ovens hybrid asks you to buy the burner separately and get a fitter, and in return gives you a Portuguese brick oven that will outlast every steel oven on the list.

Every oven in the table lives in the hybrid pizza ovens collection, and the pizza oven buying guide walks the fuel decision from the top if you are still deciding whether gas belongs in the plan at all.

Who Should Buy the Hybrid, and Who Should Buy the Wood Version

Buy the hybrid brick pizza oven if you want a real refractory dome and know some nights the fire is why it stays cold. Buy it if the patio already has a gas line, or a propane cylinder is no trouble. Buy it if you cook for a crowd often enough that holding temperature with a dial matters. Buy it if you plan to roast on the spit in the Lisboa dome and would rather not tend coals for two hours. And buy it if the $500 premium and the burner cost are worth it against the $2,795 wood only oven for the same dome.

Buy the wood only Lisboa or Pizzaioli instead if the fire is the point and you want a finish other than the terracotta Premium, since those come in five facades and the hybrid comes in one. Buy an HPC Fire or the Ibrido if you want gas without a separate burner purchase and a fitter. Buy the Maximus Mobile or Maximus Prime if a masonry base and a hoist are not in the plan. And skip any hybrid wood fired pizza oven made of brick if hairline cracks will bother you; they come with the material, on gas as surely as on wood.

What Arrives, and What to Order With It

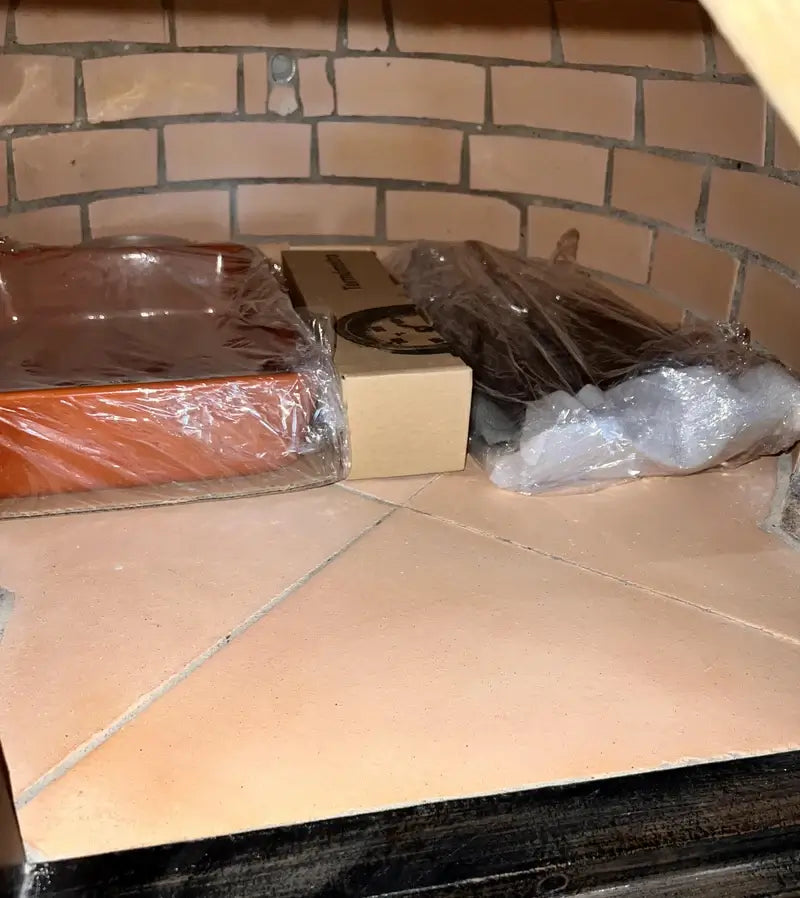

Inside the chamber on delivery day: the terracotta dish, the Ultra Fire kit, and the packed hardware, shipped inside the dome so nothing rubs the finish.

The crate holds one finished oven, not a kit. Packed inside the chamber are the cast aluminum door and chimney spout with its damper, the Portuguese terracotta baking dish at 10 by 14.5 by 3 inches, the 0 to 500°C dial thermometer, the Ultra Fire crack repair kit, and the installation and curing instructions. What is not in the crate: the burner, which comes from Vamparossa; the chimney extension and cap; the cover; tools; the base; and the gas line. A hybrid brick pizza oven is complete as a wood oven the day it lands and complete as a gas oven the day the fitter leaves.

The cover comes first, because the three year warranty requires the maker's own cover whenever the oven is not in use and because a generic tarp will not fit either dome. The Lisboa dome takes the taller 100T fit of the Authentic Pizza Ovens brick oven cover; the Pizzaioli dome takes the shorter 100W. Covers are made for one dome and are not returnable, so match the fit to the variant you ordered. With the burner installed, the head stays inside under the cover; with no burner fitted, keep the port closed against weather the same way you keep the door closed.

Then the rest. The rotisserie spit, 41 inches long, fits the Lisboa dome only and is the reason to pair that dome with a burner. The starter pack is the peel, turner, brush, and shovel the floor needs. The chimney extension and chimney cap lift the exhaust above head height. The BBQ grill rack stands over the coals for steaks, and the HPC Fire infrared thermometer reads the floor itself, which matters on gas, where the rear flame heats the dome before the floor. Everything else is in the pizza oven accessories collection. Add them to the oven order and they ride free in the same crate.

Buying the Hybrid Ready Oven From Crustify

Crustify Pizza Ovens is an authorized Authentic Pizza Ovens dealer. Both hybrid domes ship crated and shrink wrapped from the brand's Texas warehouse by freight truck to the curb. Orders over $750 ship free, so the oven qualifies; the single charge at checkout is the $95 liftgate fee every oven over 150 pounds carries, for the gate that lowers a 1,300 pound crate at a home address. Business address with a dock? Contact us and we refund it. No shipping to Alaska, Hawaii, or Puerto Rico, and a remote or mountain address may carry a carrier surcharge we confirm with you before the oven leaves.

Lead times are the one thing that differs between the two variants. The Lisboa Premium Hybrid is a stock item at the warehouse and ships within a few business days of the order. The Pizzaioli Premium Hybrid is built to order in Portugal at about 12 weeks, and we confirm the date with the factory before your card is charged for a build. The burner is on its own timeline from Vamparossa, so order it as soon as the oven is confirmed and it will be waiting when the crate lands.

Inspect the crate before signing and note any damage on the delivery receipt; concealed damage must be reported within five days. Returns are accepted within fourteen days on an unused, still crated oven with return freight on the buyer, which on 1,300 pounds is worth avoiding by settling the dome, the base, and the gas plan before checkout. Questions go to the owner through the contact page or the chat button, usually answered the same day. Financing is available at checkout, and the full range, wood only and hybrid, is on the Authentic Pizza Ovens brand page.

KEY FEATURES

• Authentic Pizza Ovens hybrid ready brick oven: the Lisboa Premium or Pizzaioli Premium dome with a burner port formed at the factory before the outer shell goes on
• Wood, gas, or both: fits the Vamparossa M-1 manual or E-1 automatic burner in natural gas or propane, purchased separately from Vamparossa; cooks on wood exactly like the standard Premium with no burner fitted
• Handmade in Portugal: firebrick chamber in refractory mortar, patented rockwool insulation held by steel mesh, refractory cement shell about six inches thick in total
• Lisboa dome: 31 x 31 in floor, 15.5 x 12 in split Dutch door, takes the rotisserie spit, about 1,300 lb, in stock in Texas
• Pizzaioli dome: 33 x 33 in floor, 19.7 x 10.6 in door that opens down, no spit, about 1,250 lb, built to order at about 12 weeks
• Cast AlSi10Mg aluminum door, chimney cavity, and 5.5 in chimney spout with damper; borosilicate viewing window; no galvanized or zinc coated parts
• 500°C maximum on the dial; pizza at 370 to 450°C on the floor in about 90 seconds; holds above 350°C for about four hours after peak firing on either fuel
• Included in the crate: door and spout, 10 x 14.5 x 3 in terracotta baking dish, 0 to 500°C dial thermometer, Ultra Fire crack repair kit, four lifting loops, installation and curing instructions
• Premium finish only: terracotta brick arch and white stucco dome that can be painted or tiled after curing; any other Authentic Pizza Ovens dome can be drilled to order at list price plus $500 in 12 to 15 weeks
• Same five day cure as every traditional dome, on gas or wood; hairline cracks are normal and not a defect
• Cover required for the warranty: 100T on the Lisboa dome, 100W on the Pizzaioli; covers are dome specific and not returnable
• Gas connection by a licensed fitter under local code; the burner's gas train mounts behind the oven and only the port is touched
• Three year structural warranty from an authorized dealer; outdoor residential use
• Free freight from the brand's Texas warehouse with the $95 residential liftgate fee at checkout; accessories ride free in the same crate

SPECIFICATIONS

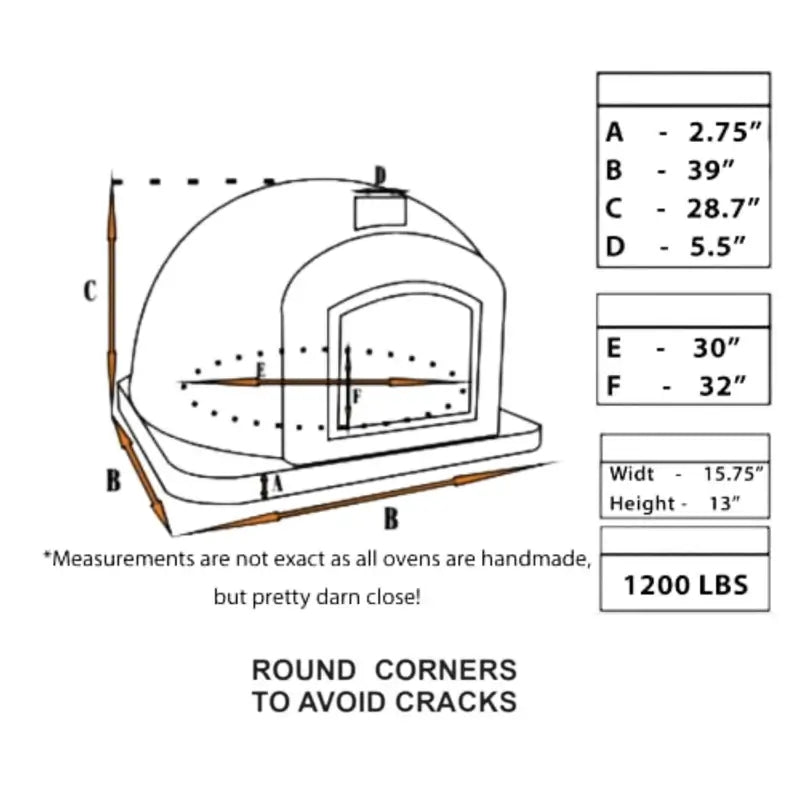

Lisboa dome drawing: 39 inches wide and deep, 28.7 inches to the top of the dome on a 2.75 inch slab, 5.5 inch flue. The maker's drawing lists the floor at 30 by 32 inches; its current spec is 31 by 31.

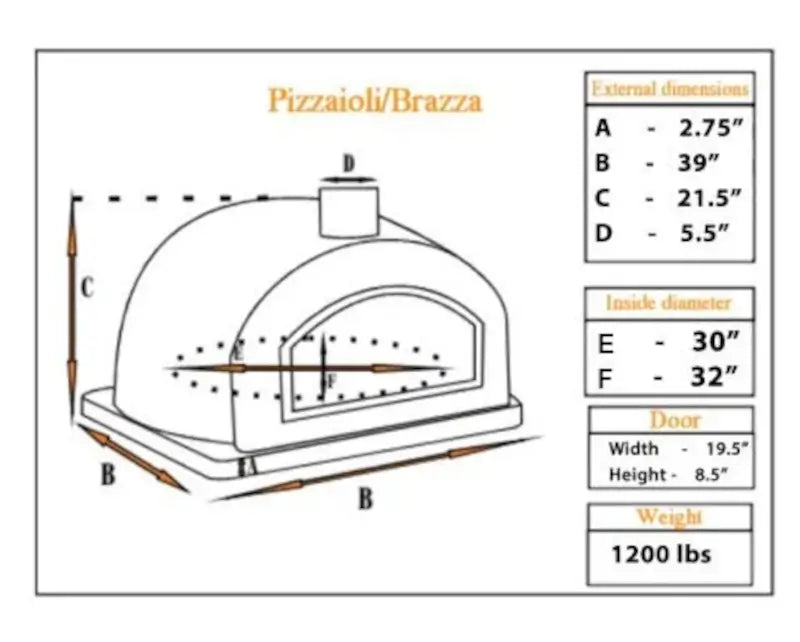

Pizzaioli dome drawing: the same 39 inch footprint, 21.5 inches to the top of the dome, 5.5 inch flue. The drawing's 30 by 32 floor and 8.5 inch door are older figures; the table uses the current 33 by 33 floor and the 10.6 inch height at the arch peak.

By dome. Figures are approximate; every oven is handmade and the maker holds dimensions to about 5 millimeters on the dome and 2 at the door.

Shared by both hybrid ready domes.

VIDEO

The two hybrid demonstrations are in the gas section above. Here is how the domes are made, and one more owner running the burner.

The making of an Authentic Pizza Ovens dome in Portugal: bricks, mortar, rockwool, shell.

An owner's hybrid ready dome on gas.

INSTALLATION GUIDE & USER MANUAL

Authentic Pizza Ovens packs its installation guide, clearance diagram, cure schedule, and care instructions inside the oven. Vamparossa ships the burner's installation and operation manual with the burner. The summary below is the two combined, so the base, the gas line, and the cure can be planned before either crate arrives.

Before the oven arrives. Build the masonry base to a 43 by 43 inch footprint, five block courses high, open in front, with a top slab rated for 1,300 pounds and the cooking floor landing about 40 inches off the ground. Route the gas supply to the rear of the base: a plumbed natural gas line with a shutoff at the oven, or a propane cylinder position on the base shelf with room for the regulator and hose. Confirm the 2, 16, 30, 28, and 47 inch clearances to anything combustible. Arrange the lift: engine hoist, forklift, or skid steer on the four corner loops.

Delivery and setting. Liftgate truck to the curb. Inspect the crate and note damage on the receipt before the driver leaves. Uncrate, strap through the loops, set the dome square on the slab, cut the loops flush. Fit the cast aluminum door and the chimney spout with the damper handle to the front, then the extension and cap if used. Remove the dish, thermometer, and kit from the chamber.

Burner installation. A licensed gas fitter slides the Vamparossa head through the rear port, mounts the gas train behind the oven per Vamparossa's manual, connects the supply, and leak tests. The E-1 also needs its control box mounted and a 120 volt outlet. No drilling, no cutting, no modification to the dome; the port is the only opening the burner uses.

Curing, five days, before the first pizza. Let the oven sit about a week after delivery. Then one fire a day, held four to five hours, at 60, 100, 150, 200, and 250°C on the dial, door closed each night. On gas, set the M-1 low or set the E-1 to the day's number. On wood, a small kindling fire grown a little each day. Never past the day's target.

Every cook. Gas: door off, damper open, burner lit, 30 to 40 minutes to pizza heat, floor in front of the head is the working space. Wood: seasoned hardwood only, crosshatch stack in the center, torch lit, raked to one side once the dome clears. Both: gas up first, one split of wood beside the head for smoke. Never above 500°C on the dial on any fuel. Sweep the floor before cooking; shovel cold ash out before the next fire.

After. Valve closed at the burner and at the supply. Door closed. Cover on whenever the oven is not in use. Ultra Fire on hairline cracks once the oven has run a few weeks, if the look bothers you.

WARRANTY INFORMATION

Authentic Pizza Ovens warrants the hybrid ready Lisboa Premium and Pizzaioli Premium against major defects in materials and craftsmanship on their structural components for three years from the date of purchase. Crustify Pizza Ovens is an authorized dealer, so an oven bought here carries the full warranty, and we help assemble any claim.

The warranty is conditional. It does not apply to an oven not installed to the maker's guide and local code, to cracking from over firing or a skipped cure, to an oven run above 500°C on the dial on any fuel, to accelerants, softwood, or treated lumber, or to weather damage on an oven not kept under the maker's own cover when not in use. Hairline cracks in the outer refractory shell are normal on a handmade oven and are not a defect. Any opening cut into the dome other than the factory port is outside the warranty.

The burner is a Vamparossa product and carries Vamparossa's warranty, not the oven maker's. Damage to the oven caused by a burner installed contrary to Vamparossa's instructions or without a licensed fitter is not covered by either.

Claims go to Authentic Pizza Ovens by email with the model and variant, the invoice number, the purchase date, a description, and photographs. Send the same to Crustify and we walk it through with the maker.

FREQUENTLY ASKED QUESTIONS - FAQ'S

Your Questions Answered Before You Buy

The questions gas buyers ask most about the Authentic Pizza Ovens hybrid before they order. If yours is not here, the chat goes to the owner and a real answer typically comes the same day.
